5: 1-100: 1 Worm Reducer NMRV063 Speed Gearbox 14 Mm Input Shaft for 86 * 86 Square Flange Motor

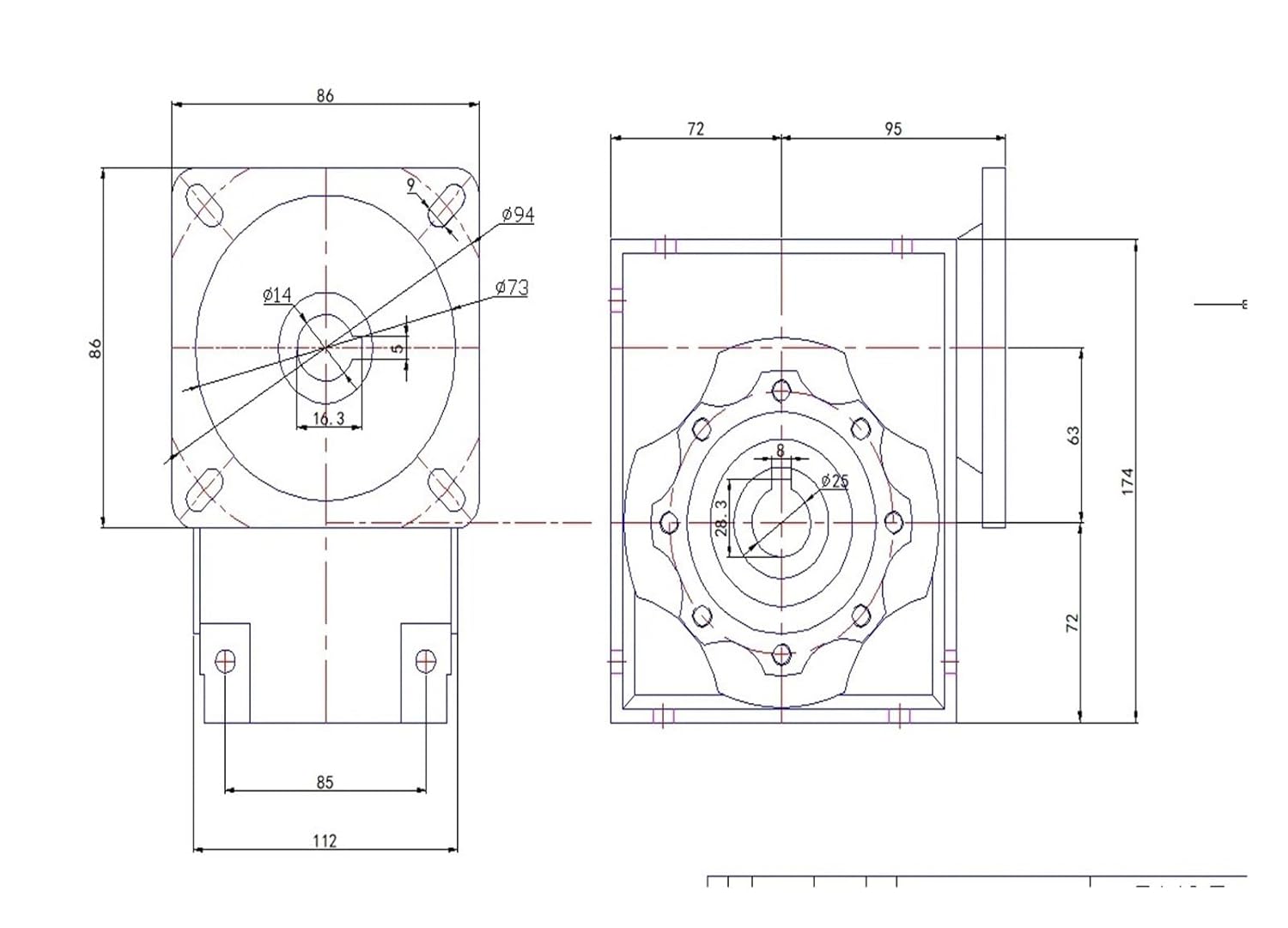

5: 1-100: 1 Worm Reducer NMRV063 Speed Gearbox 14 mm Input shaft for 86*86 Square flange motorWorm Reducer*1PCNote:We have ratio of 5:1,7.5: 1, 10: 1, 15: 1, 20: 1, 25: 1, 30:1,40: 1, 50: 1, 60: 1, 80: 1, 100:1 for customers.This connection of the worm gearbox Without the shaft of the hose and without the output worm shaft, and it is for 19mm Dia key type input shaft. When assembling this gearbox with motor, the input of the 19mm diameter can be connected directly with the key.Color: silver and blue (sometimes just one color)Material for worm reducer:housing:aluminum alloy die castWorm gear: Nodular cast iron and bronzeFeature ofworm reducer gearbox:1) High quality aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting anc connection, high efficiencyDrawing of the NMRV063 worm reducer:We also have worm reducerparts such asoutput shft, torque arm and output flange,If you need to click on the following link to buy:Single output shaft:Dual outputshaft:Torque arm:Output flange:The production line and stock view:Torque : 49N.m-166N.mModel Number : NMRV63/RV63Output Power : 0.25 KW- 1.5KWInput Speed about : 1500rpmOutput Speed : Varies with changes in speed ratioOutput hole diameter : 25mm
